Replacement Oil Dipstick Handles

3d manufactured replacements made with carbon fiber to last.

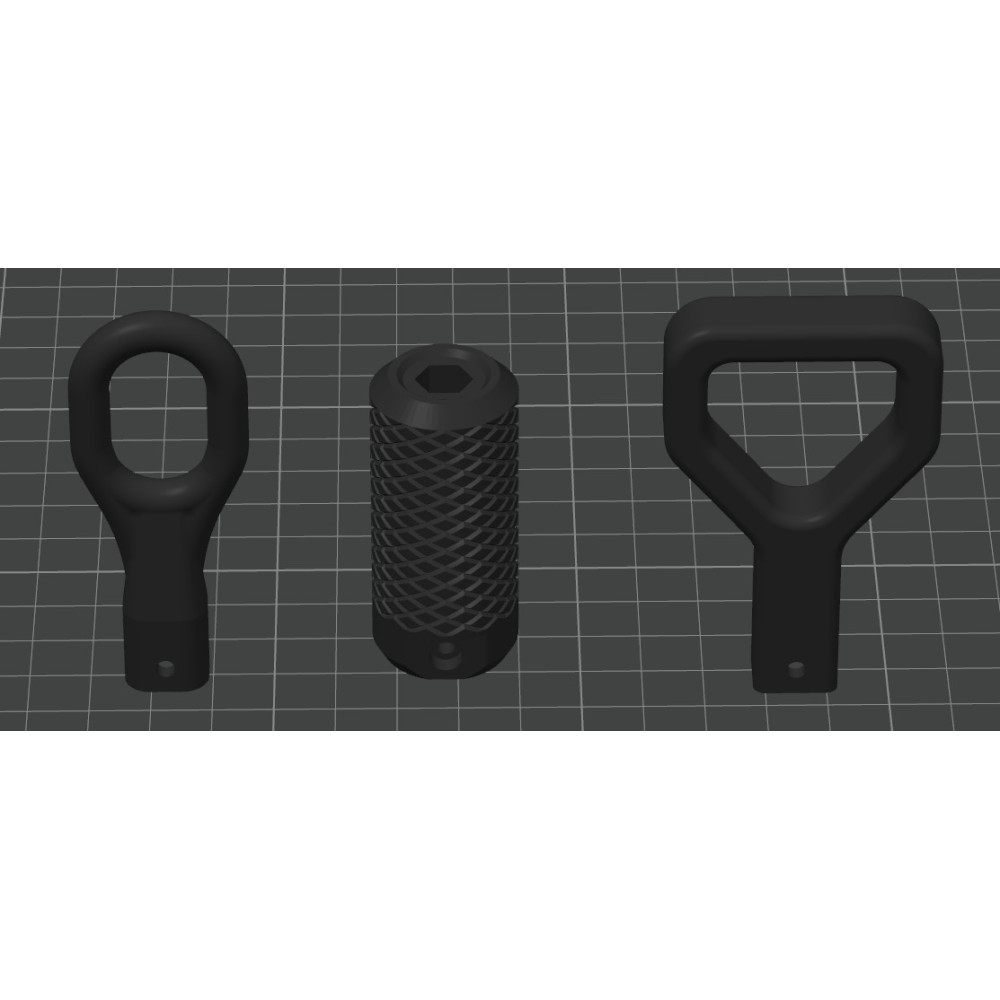

Three types to choose from,

Knurled Cylinder, Shovel Handle Style, Smoothed Oval Standard Handle

Installation, You can use a m3 screw or use two part epoxy it to your broke off portion of your dipstick.

Prepare

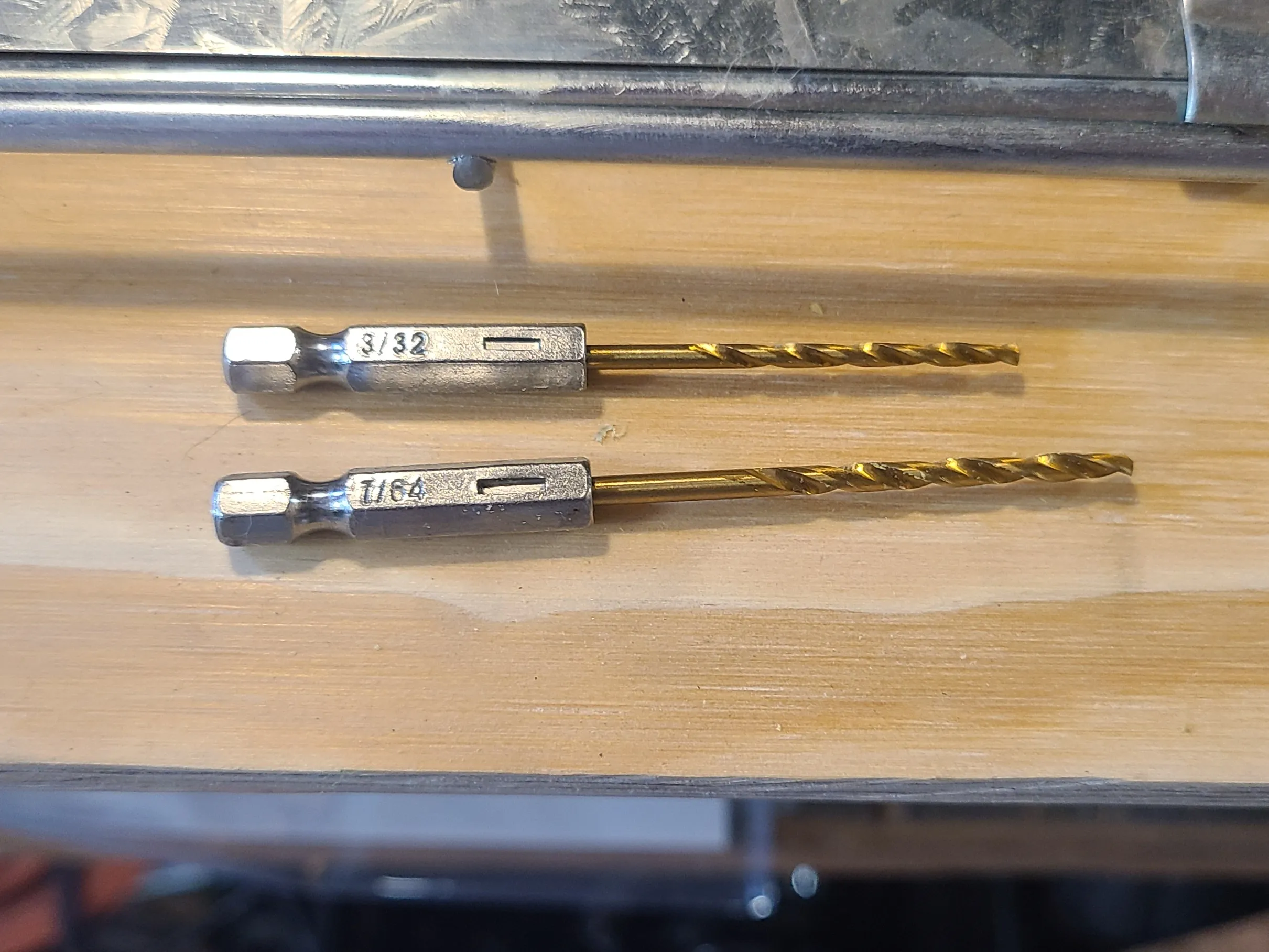

What You'll Need:

• Drill
• 3/32 Drill Bit
• 7/64 Drill Bit
• M3 x 12mm Hex Set Screw   (Included)

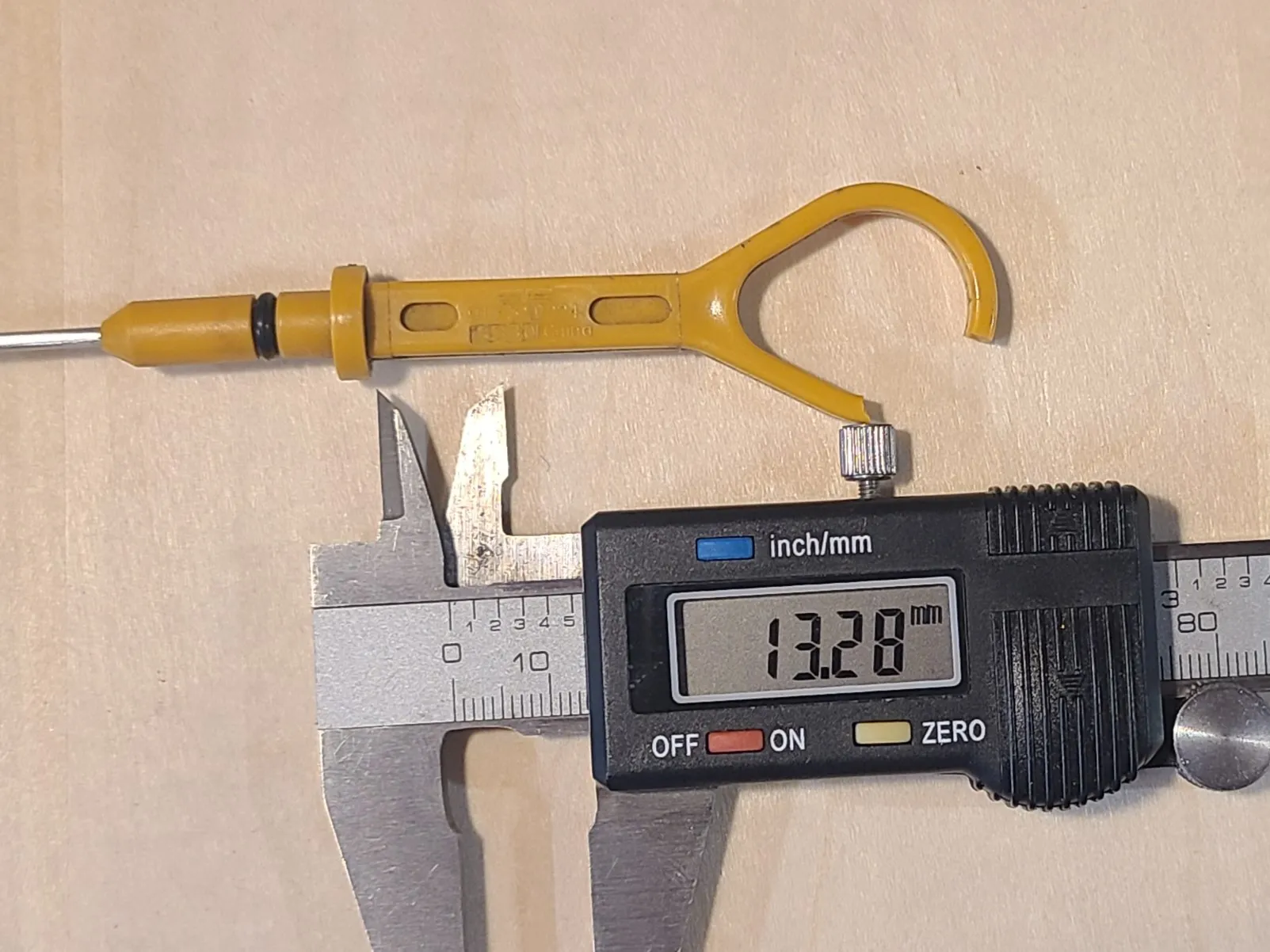

Measure

Measure approximately 13.25mm from the top of the Dipstick Base, this is where you'll be cutting.

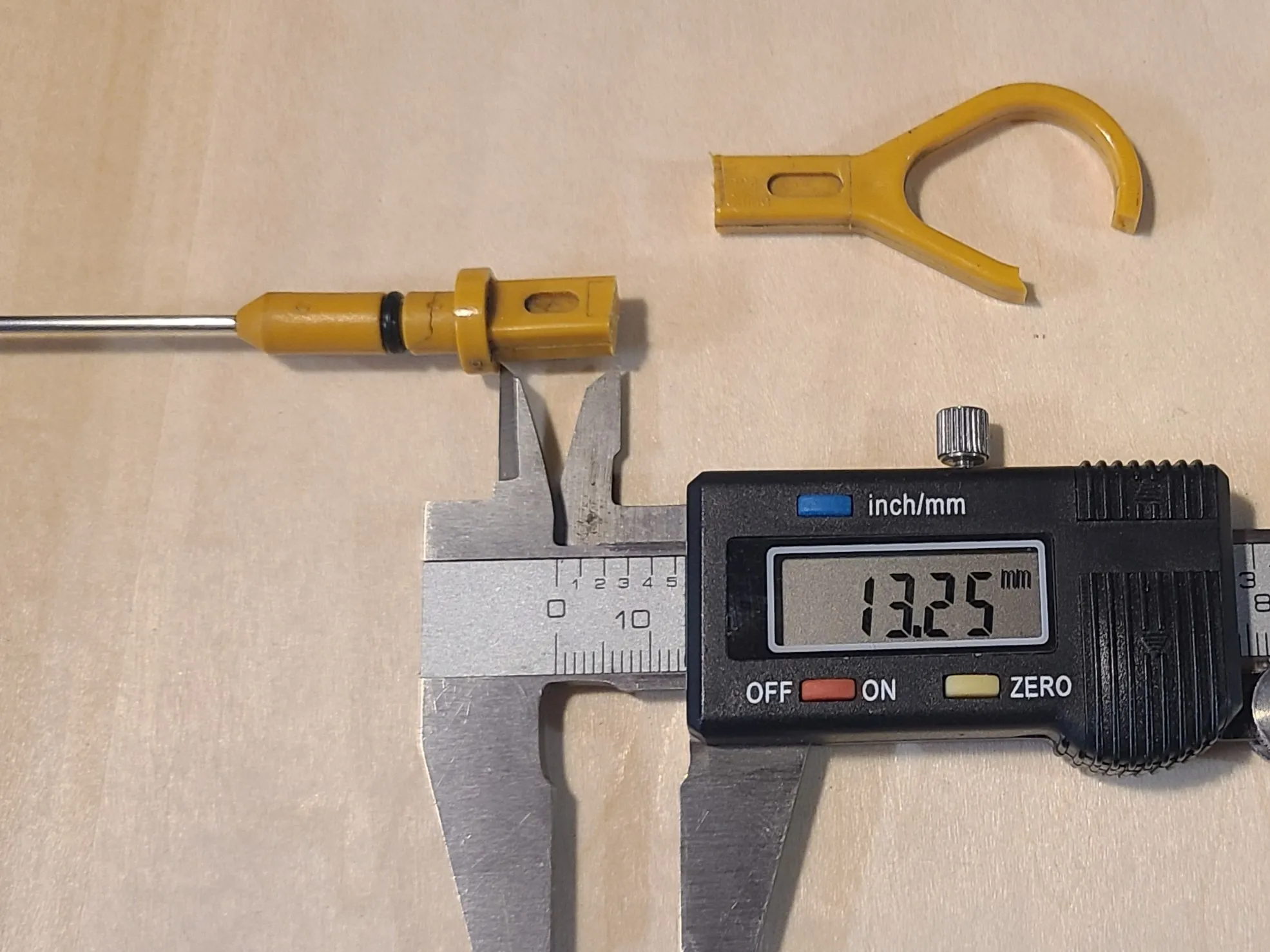

Cut

Cut off the broken section of the handle, leaving approximately 13.25mm remaining. A 0.5mm variation in the cut is okay! Or if yours is broke here just clean it up

Align Handle

Install the handle and using the 3/32 Drill Bit, drill a pilot hole for the M3 Screw. Once the pilot hole is drilled, you can remove the Handle and drill the hole back out with the 7/64 Drill Bit.

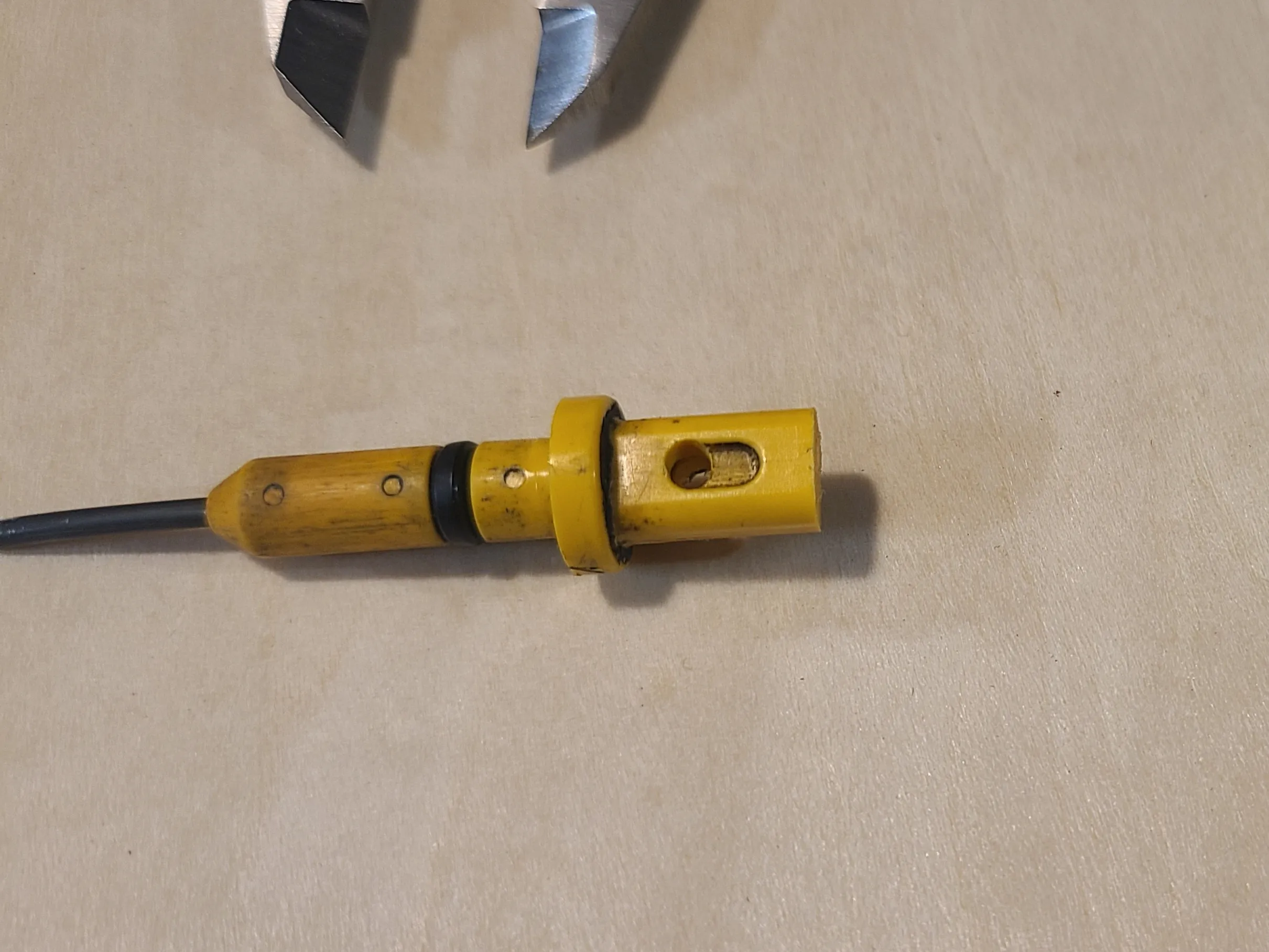

Drill

Once the pilot hole is drilled, you can remove the Handle and drill the hole back out with the 7/64 Drill Bit. The hole should be positioned near the bottom of the oval slot. You can file or drill the hole more if you'd like a looser fit for the M3 screw.

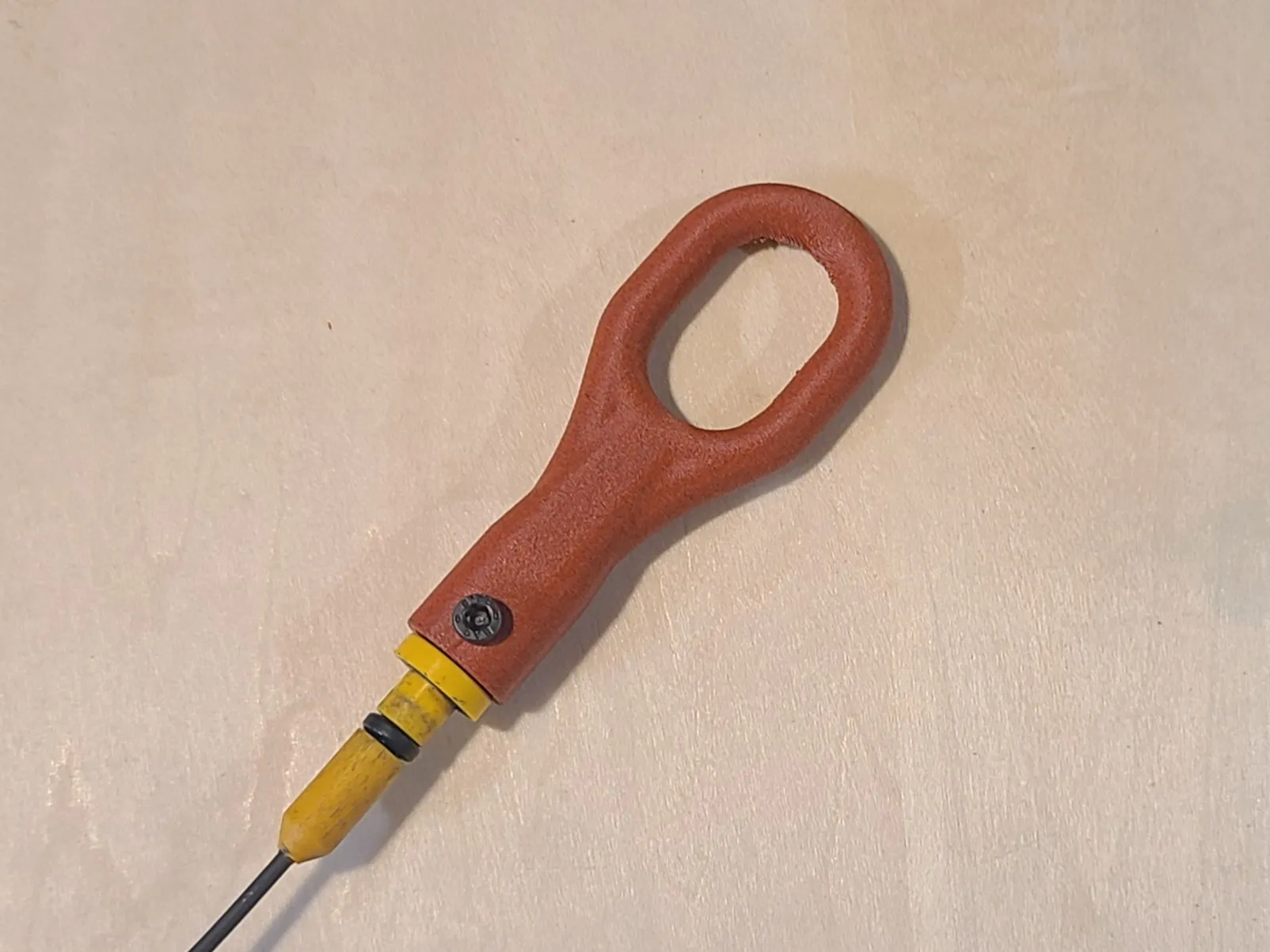

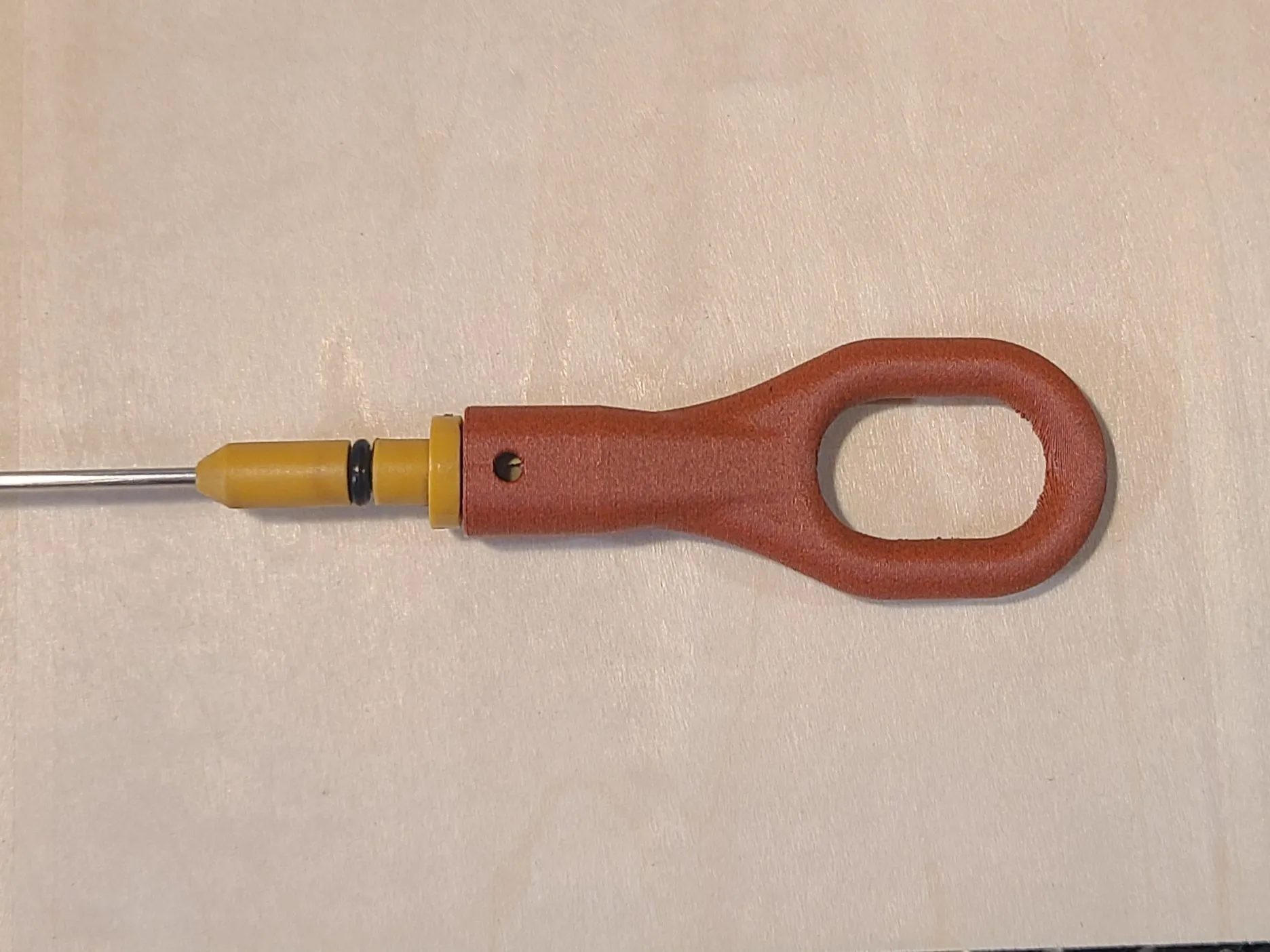

Install the M3 Screw

Install the M3 Screw making sure that it is actively threading into the plastic on the other side. One hole is slightly larger on one side to hold the threads tight.
