Home >> Ford >> 1989 >> Probe L4-133 2.2L SOHC Turbo >> Repair and Diagnosis >> Technical Service Bulletins >> All Technical Service Bulletins >> Pin Usage EEC and Electrical Schematic - Revisions >> ECA Connector Pin Usage - 2.2L EFI

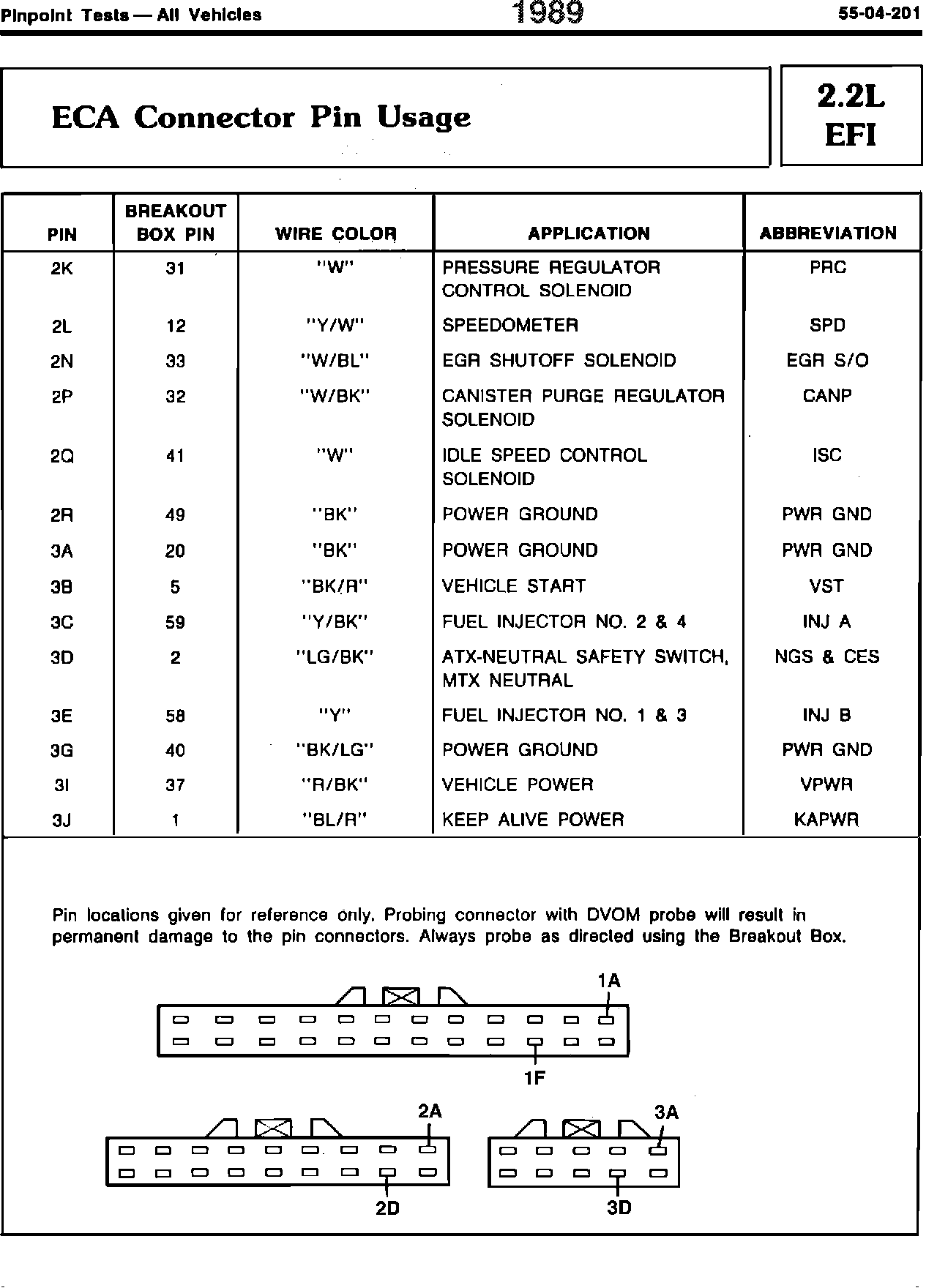

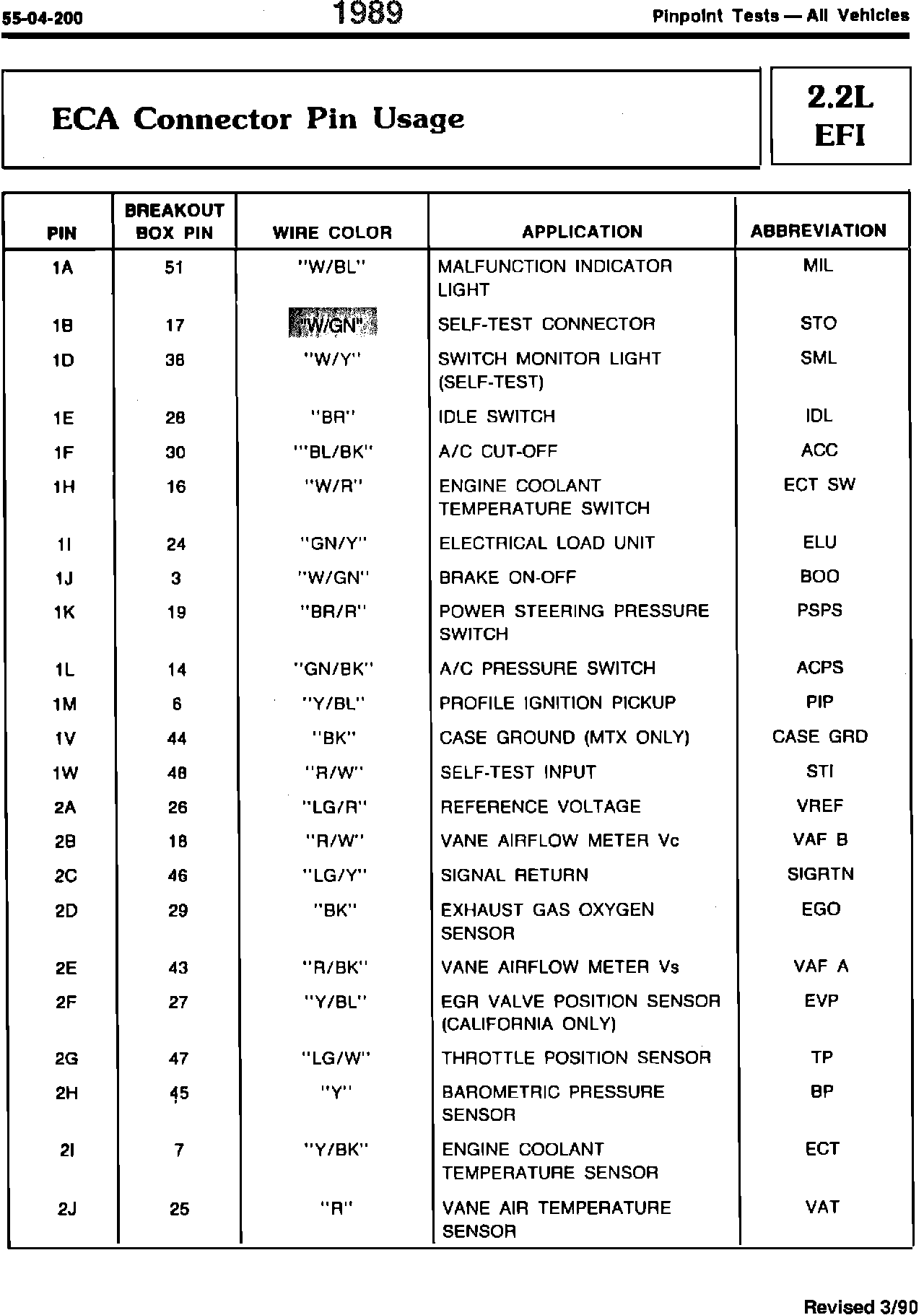

ECA Connector Pin Usage - 2.2L EFI
