Hydraulic Assembly

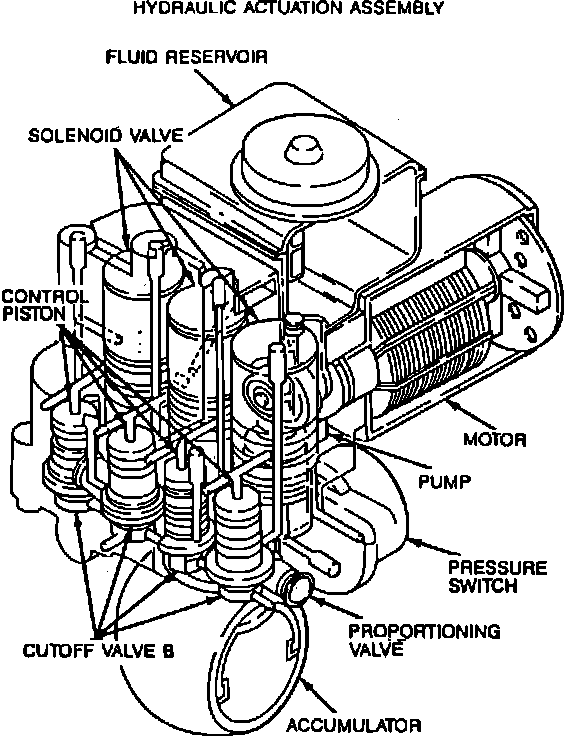

Fig. 2 Hydraulic Actuation Assembly:

The actuation assembly, Fig. 2. contains the solenoid valves, control valves, accumulator, pump motor and fluid reservoir. It provides pressure modulation of master cylinder brake pressure during ABS operation. The actuation assembly is mounted below master cylinder on the firewall.
