Attachment V - Technical Instructions(System Diagnosis): Overview
SUPPLEMENTAL DIAGNOSTIC GUIDETABLE OF CONTENTS
^ I. Symptom Chart------------------------------------ Pg. 1
^ II. Description And Operation---------------------- Pg. 2-4
^ III. Electrical Schematic----------------------------- Pg. 5-7
^ IV. Passive Restraint Module Pin Out--------------- Pg. 8-9
^ V. Diagnostic And Testing (PR Tests)------------- Pg. 10-22
^ VI. Fuel Pump Inertia Switch Technical------------ Pg. 23-27
Service Bulletin (90-26-02)

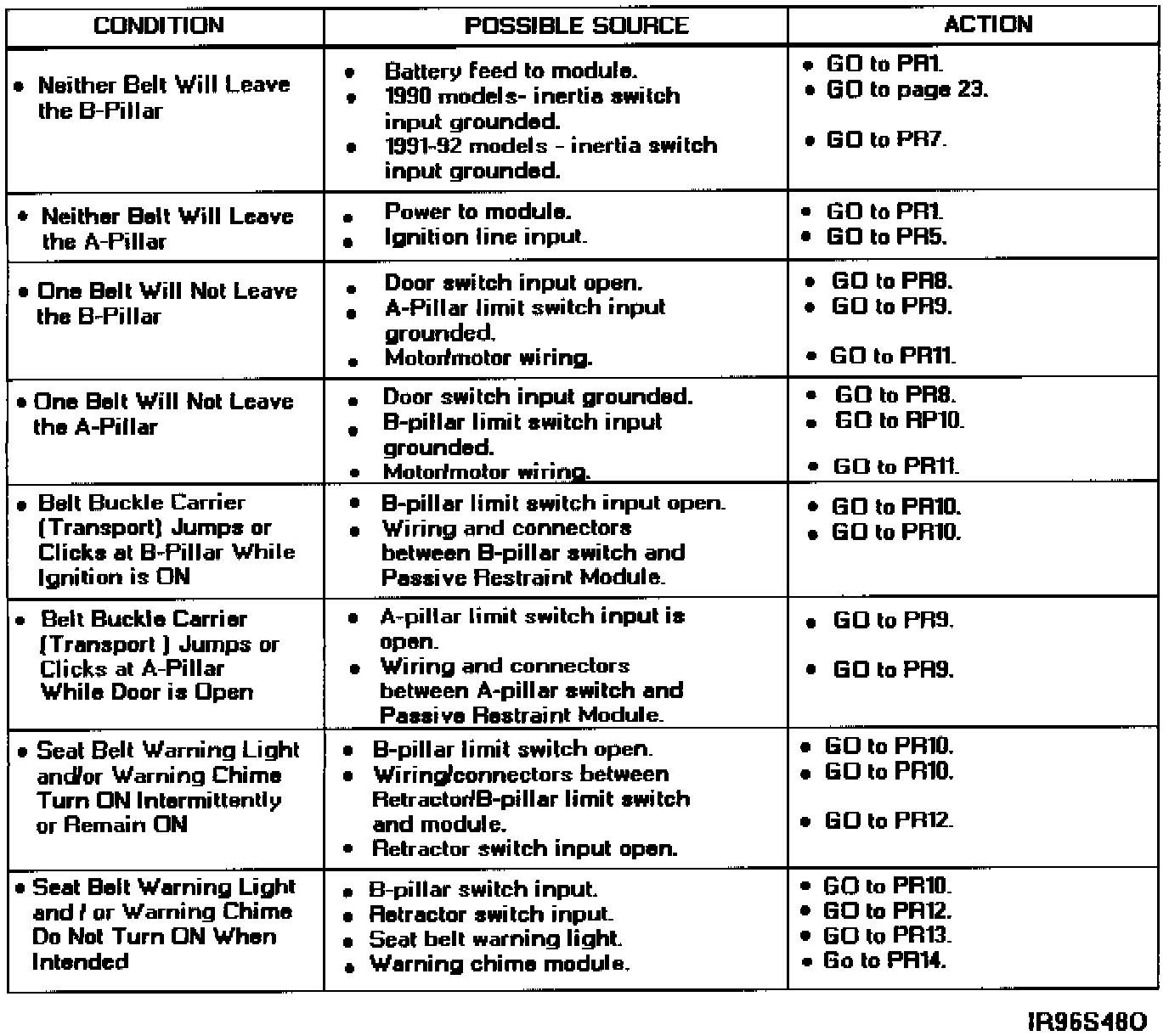

Symptom Chart
Passive Restraint System
Passive Restraint System
Passive Restraint System Connectors

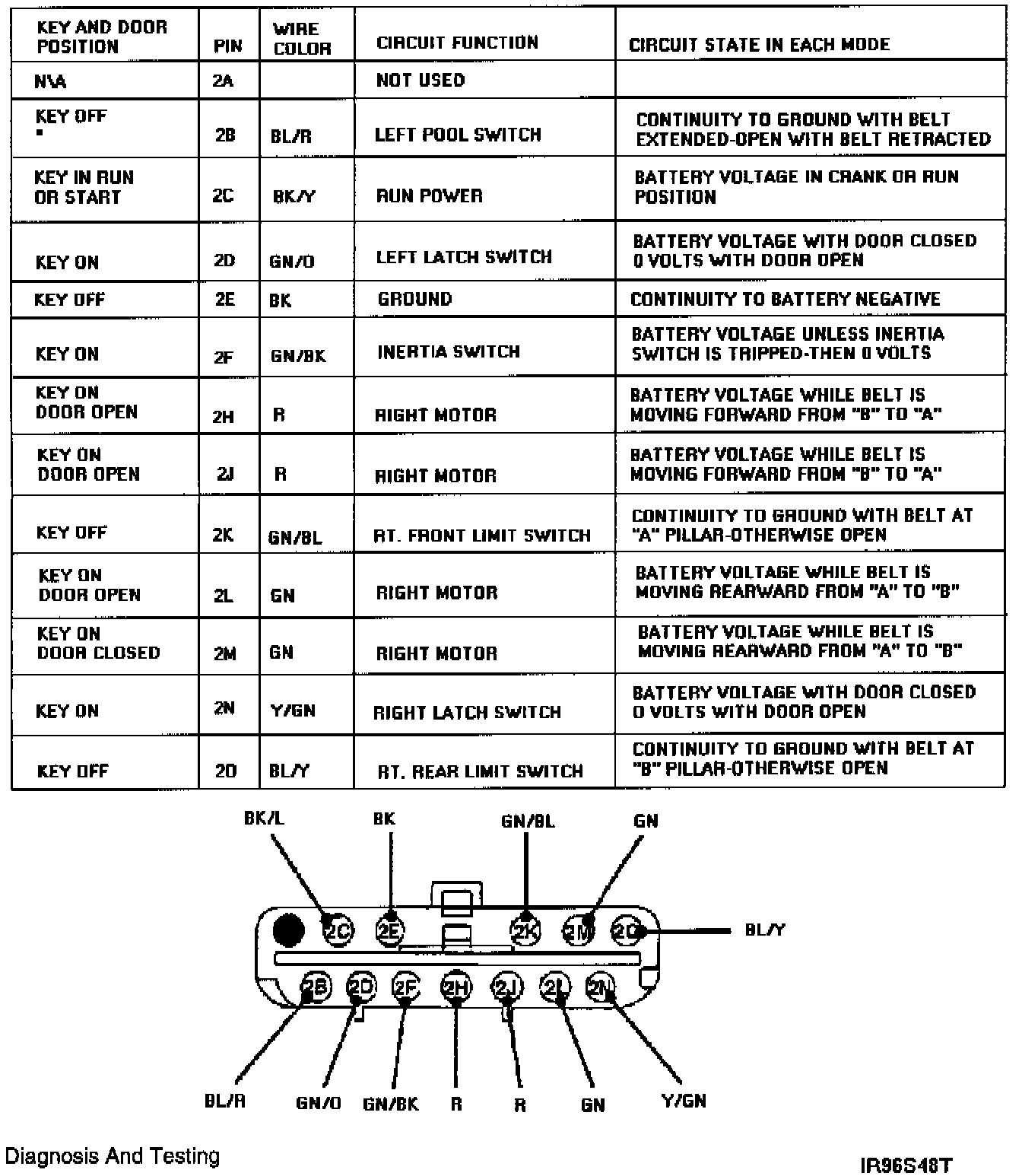

Probe Passive Restraint Module Pin Out
Grey Connector 315-1
Probe Passive Restraint Module Pin Out
Black Connector 315-2

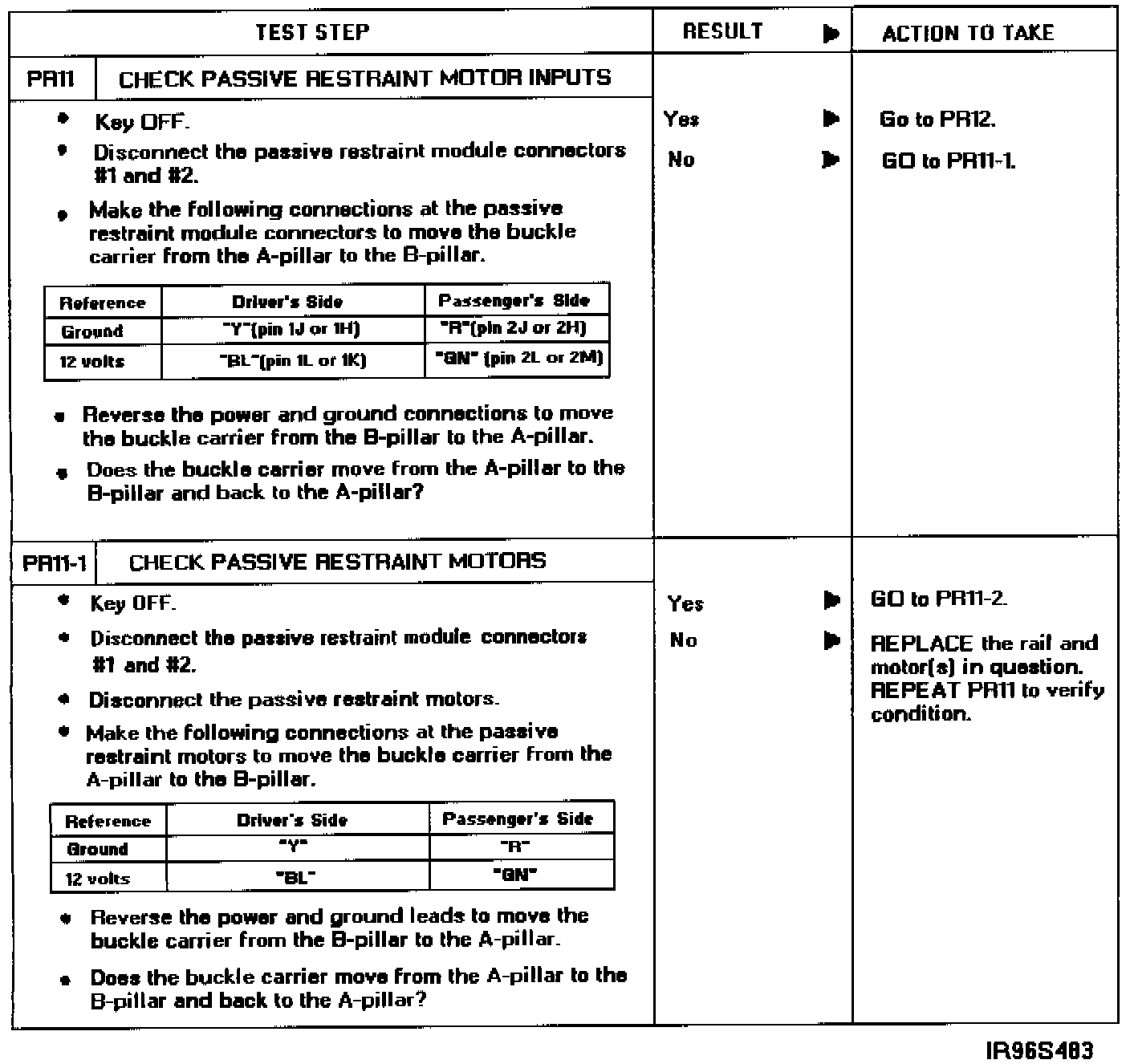

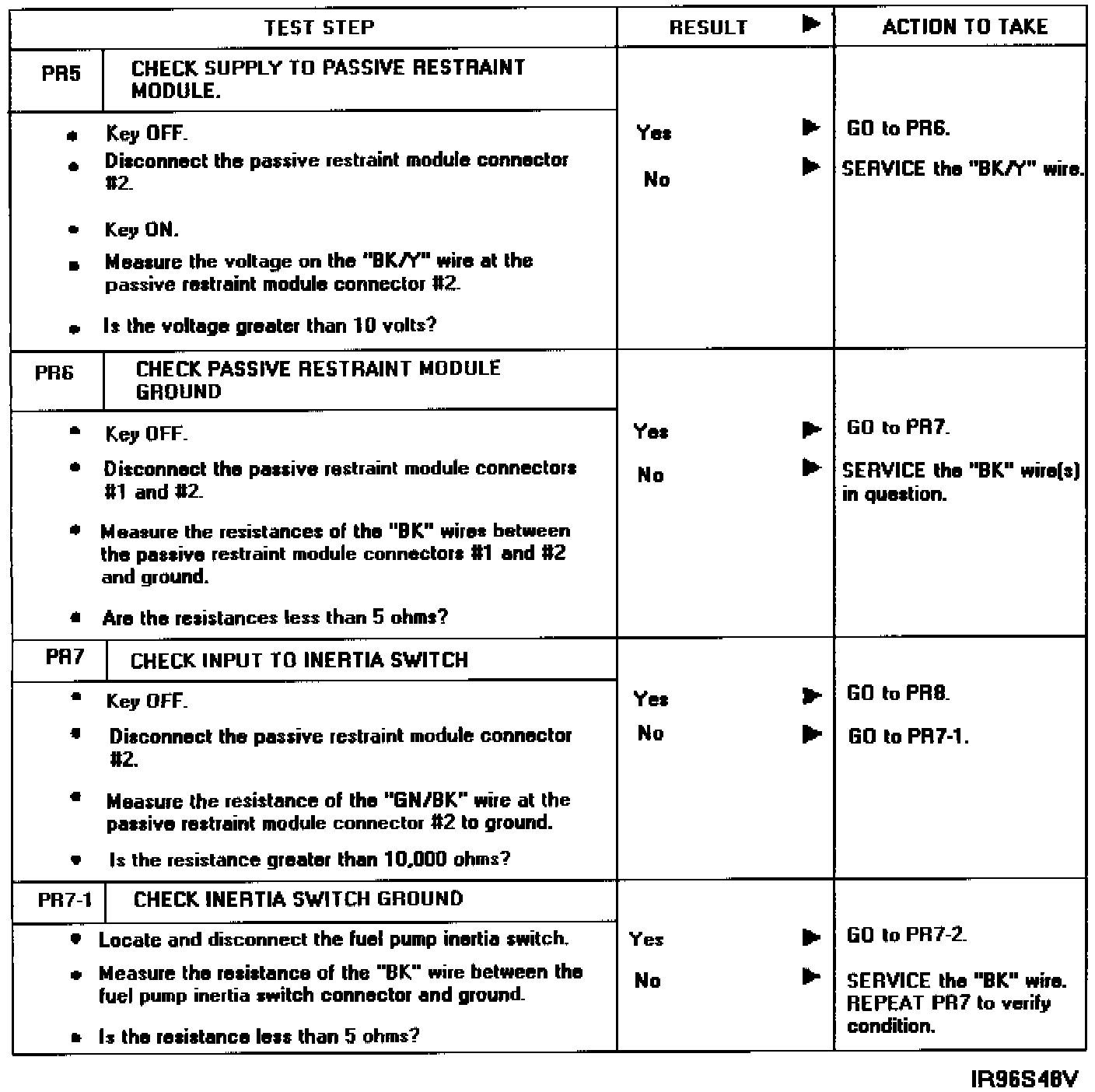

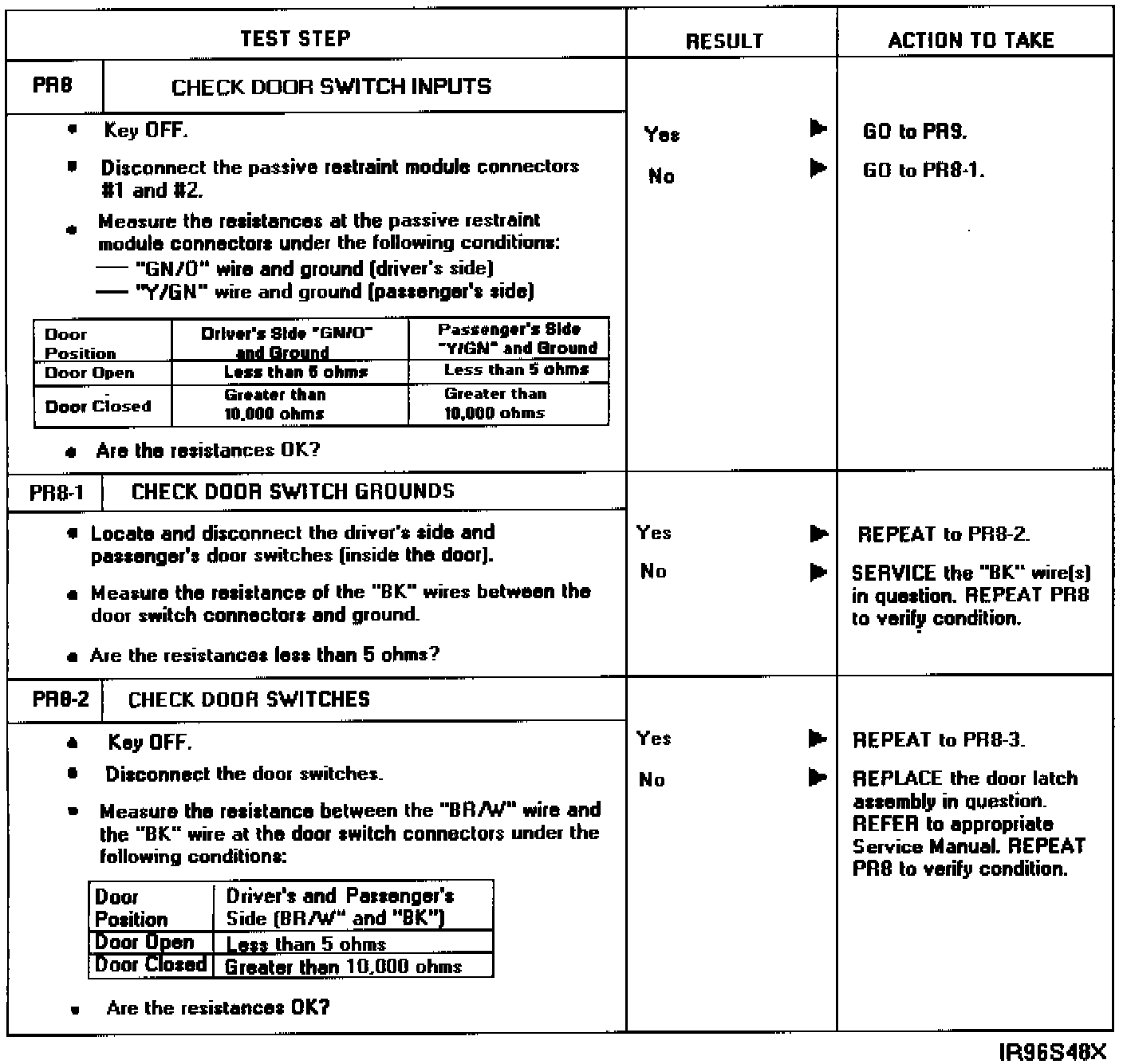

Diagnosis And Testing
