Wiring Diagrams

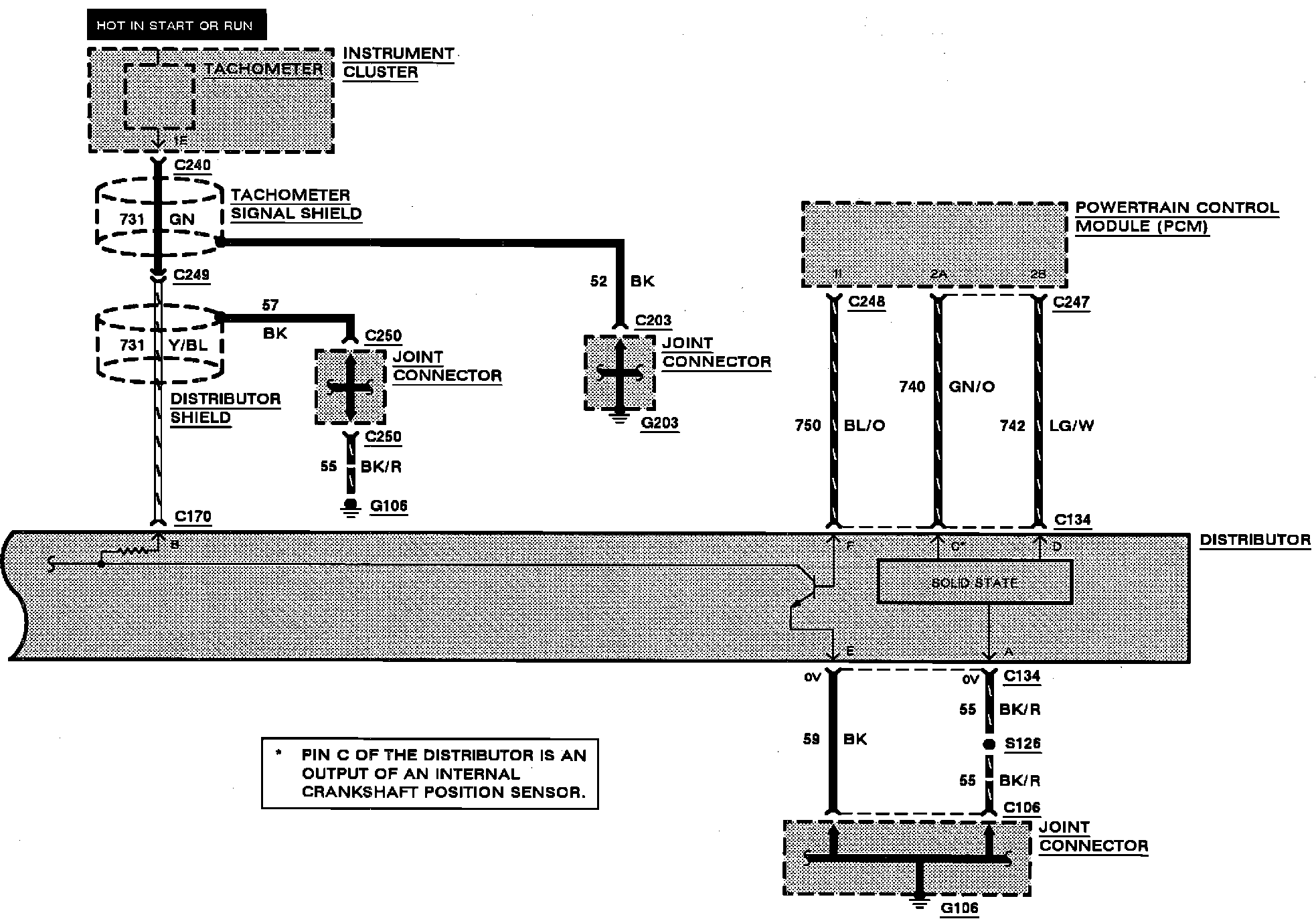

Ignition System W/Manual Transaxle:



Ignition System W/Manual Transaxle:

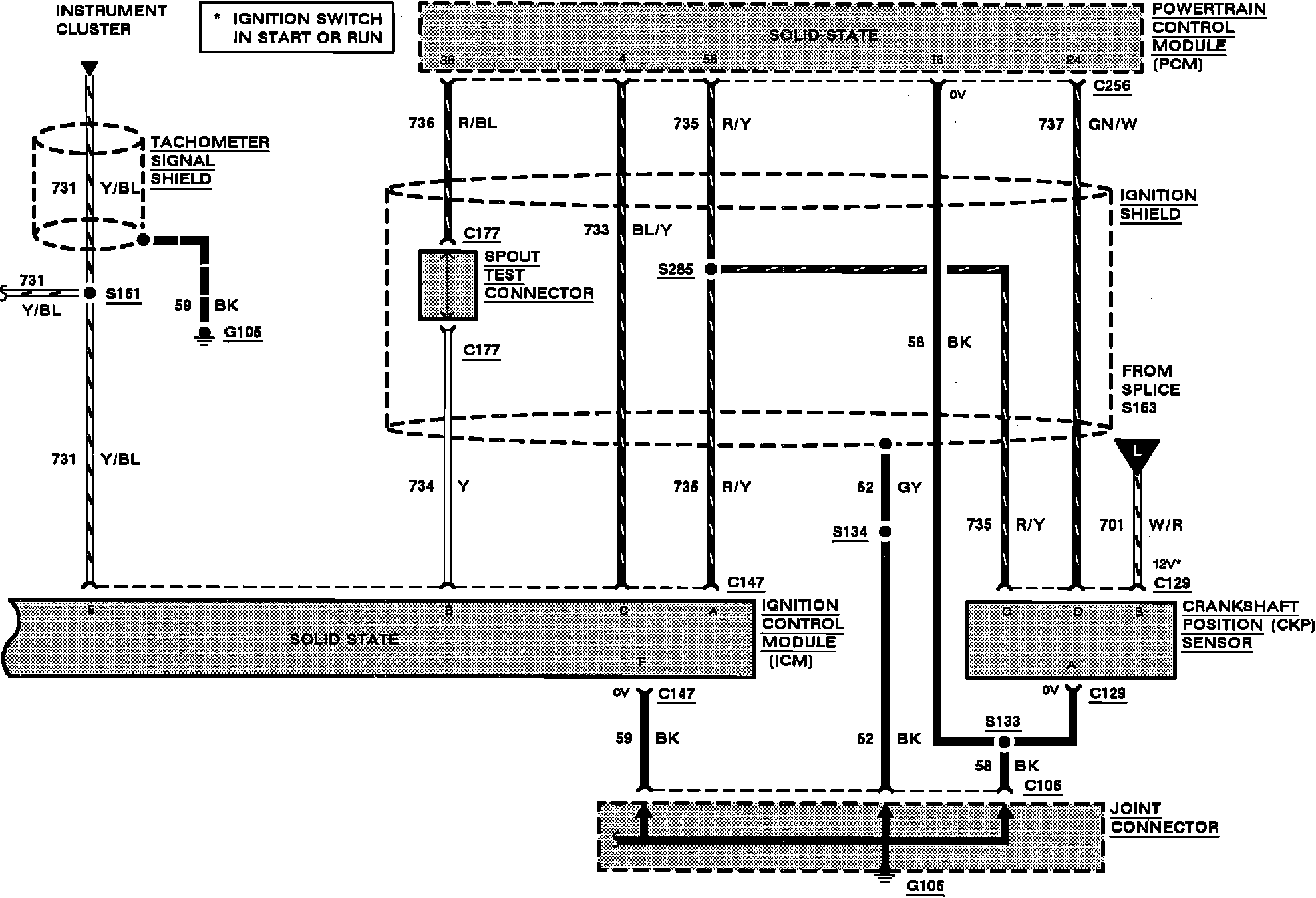

Ignition System W/Automatic Transaxle:



Ignition System W/Automatic Transaxle:
