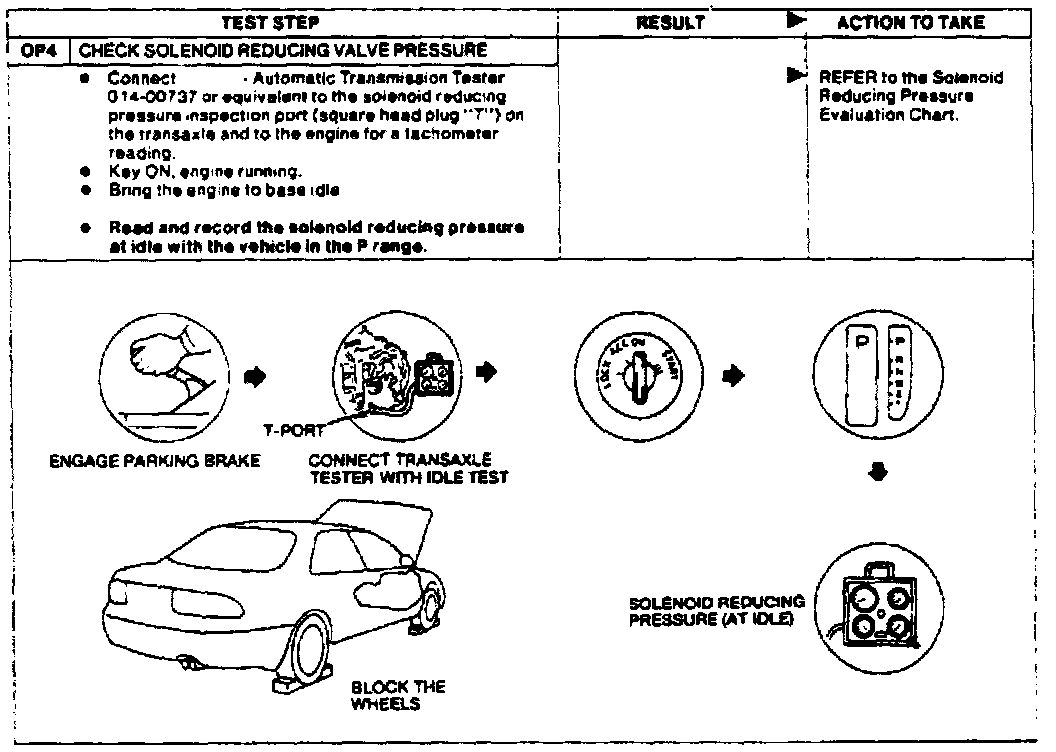

OP4 - Check Solenoid Reducing Valve Pressure

OP4 - Check Solenoid Reducing Valve Pressure:

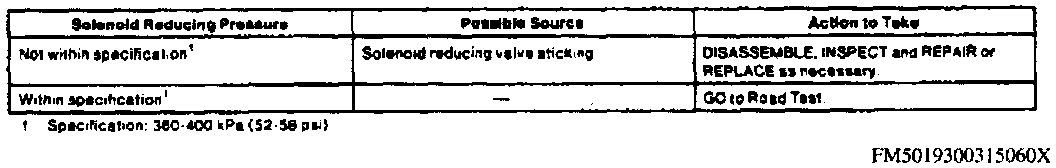

Solenoid Reducing Pressure Test Evaluation Chart:
