Instrument Panel, Gauges and Warning Indicators
>>
Audible Warning Device
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

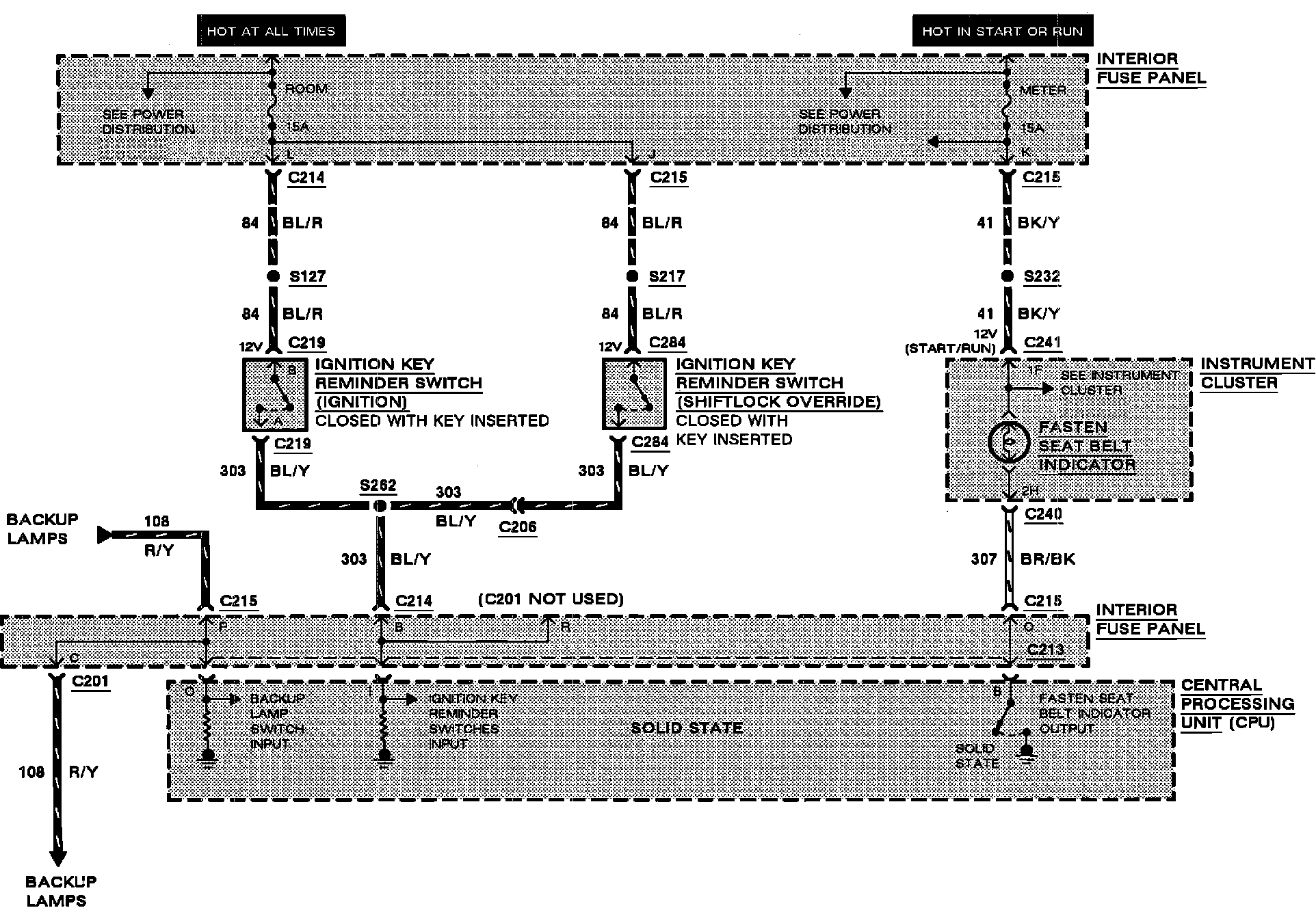

Warning Chime:

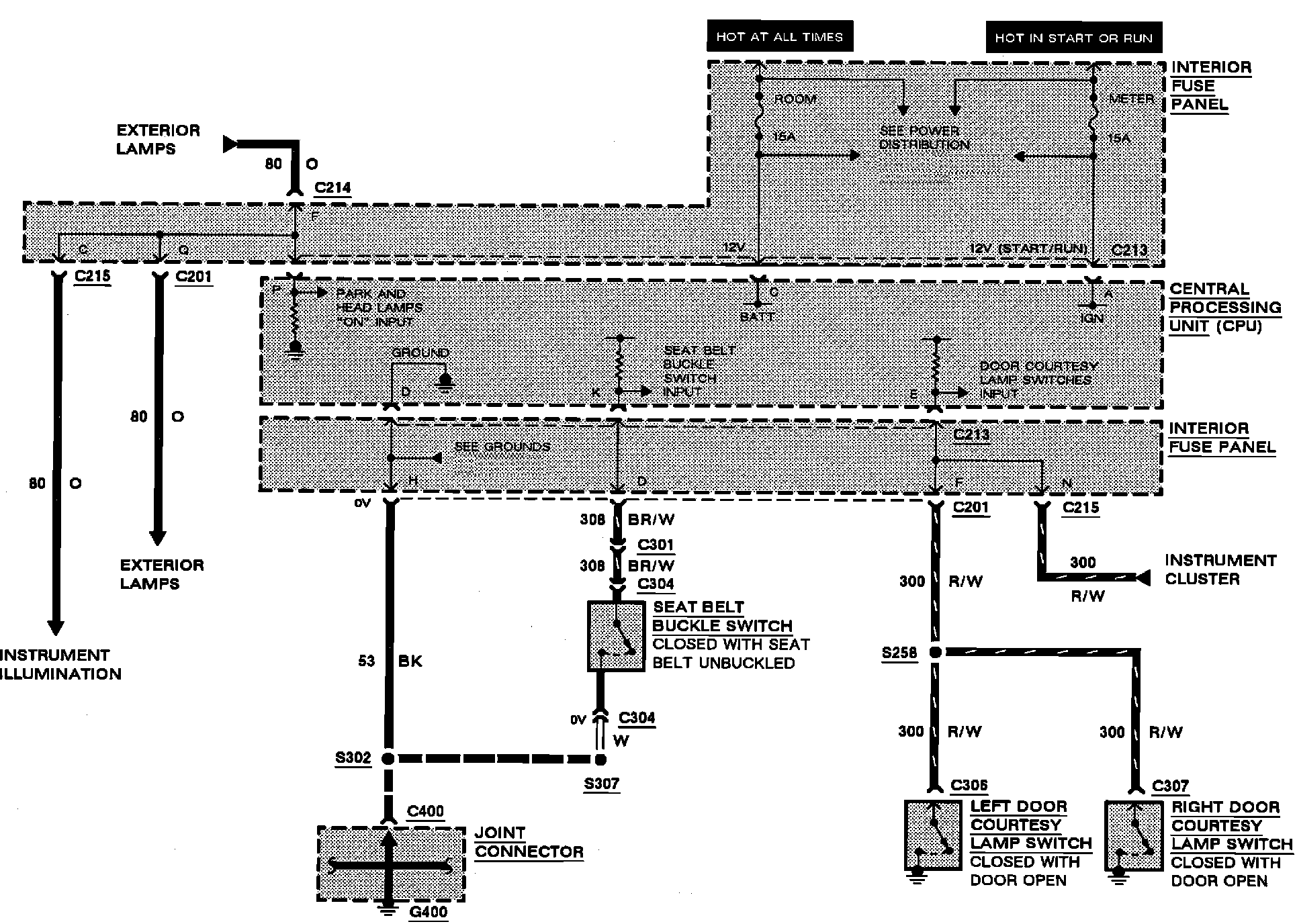

Warning Chime:
