Home >> Ford >> 1993 >> Probe V6-152 2.5L DOHC >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Block Diagrams >> With Manual Transmission

With Manual Transmission

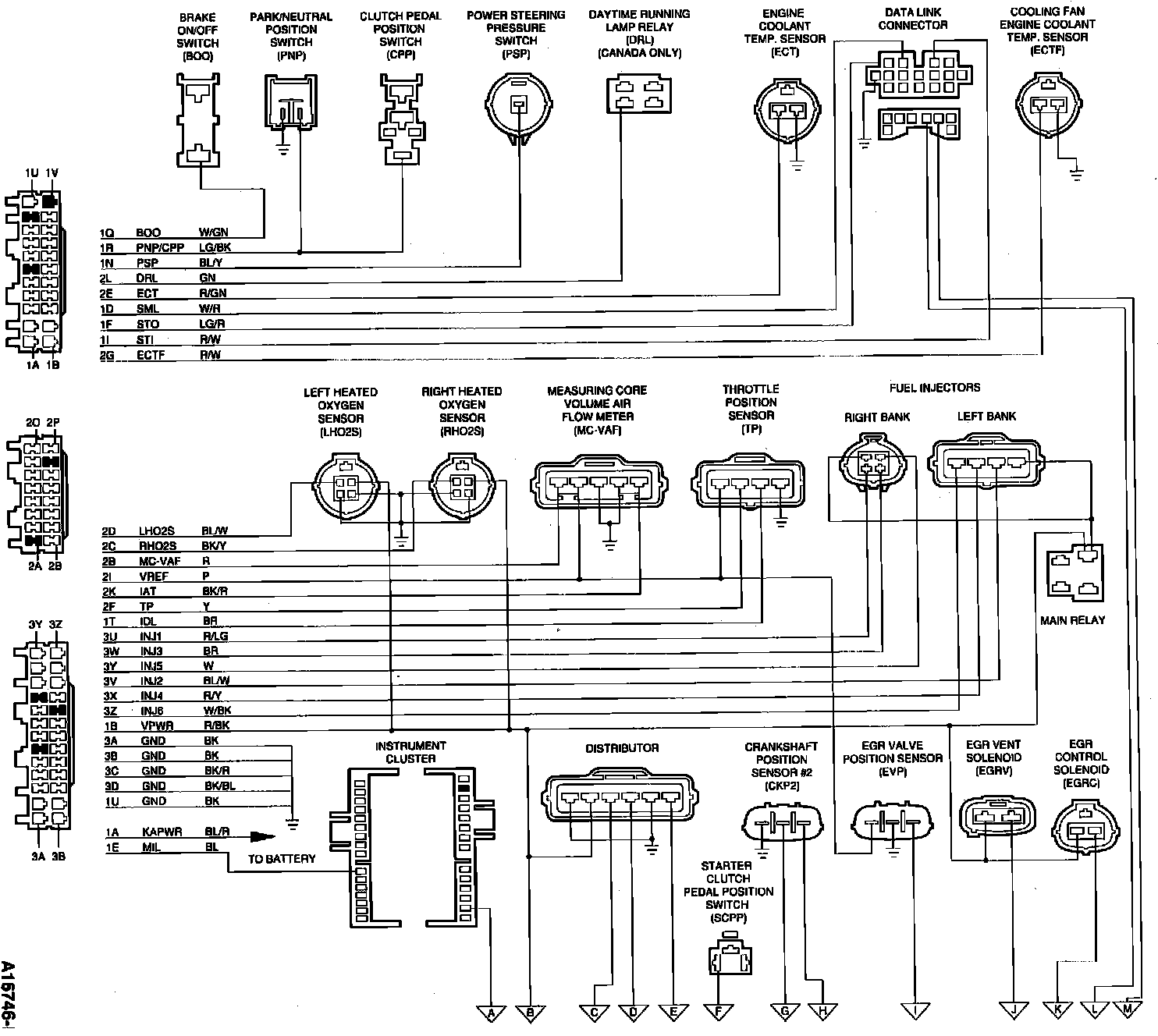

PCM Wiring Schematic (Part 1, M/T):



PCM Wiring Schematic (Part 2, M/T):
