Rear Wiper System Diagnosis
>>
Test RWS6 - RWS7
Test RWS6 - RWS7

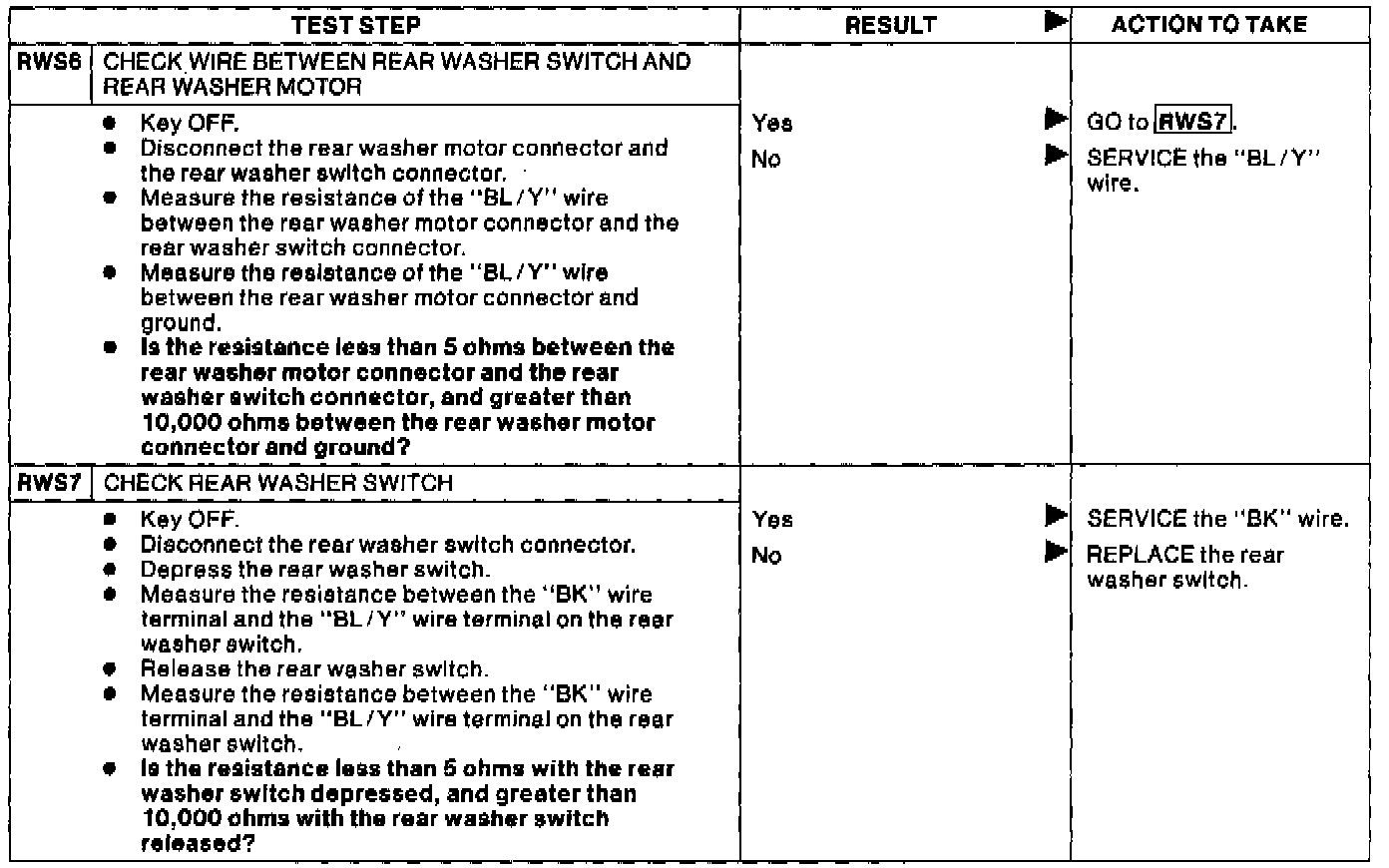

Fig. 9 Diagnostic Pinpoint Test RWS, Rear Washer System. Probe:
