Cigarette Lighter
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
Component Tests and General Diagnostics
Electrical Schematic:
Cigar Lighter Connector C1:
Cigar Lighter Connector C2:

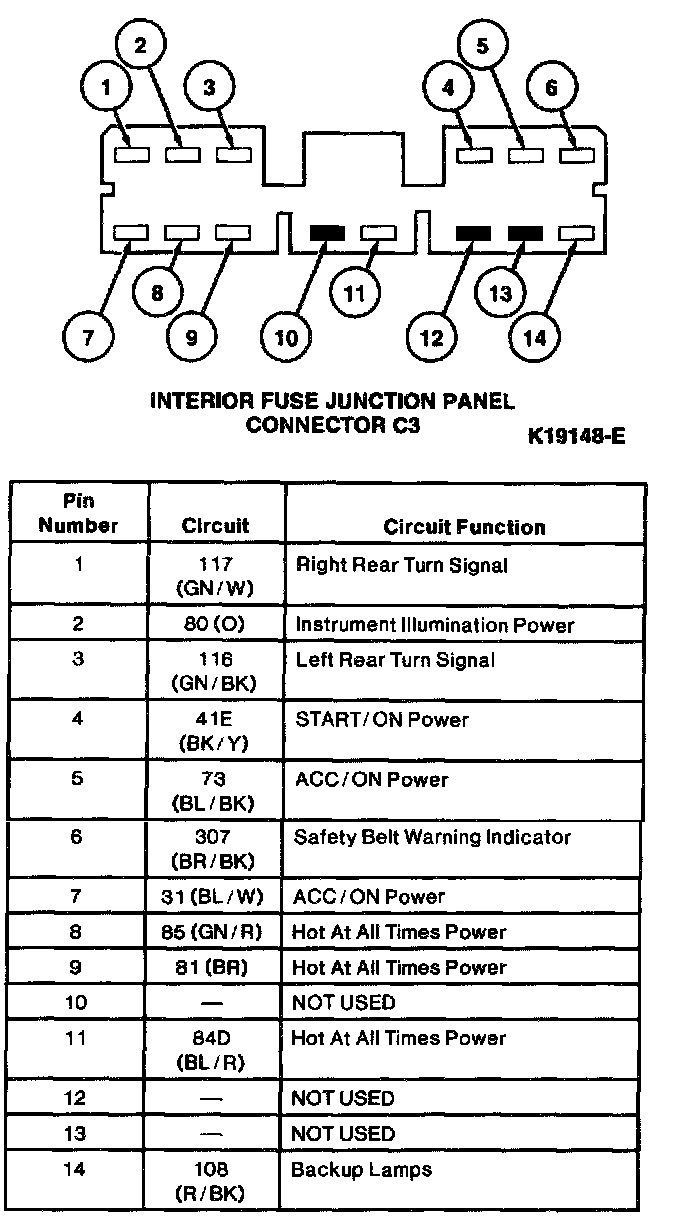

Interior Fuse Junction Panel Connector C3:
