Speedometer Head: Testing and Inspection

Test L: Speedometer Inoperative.:

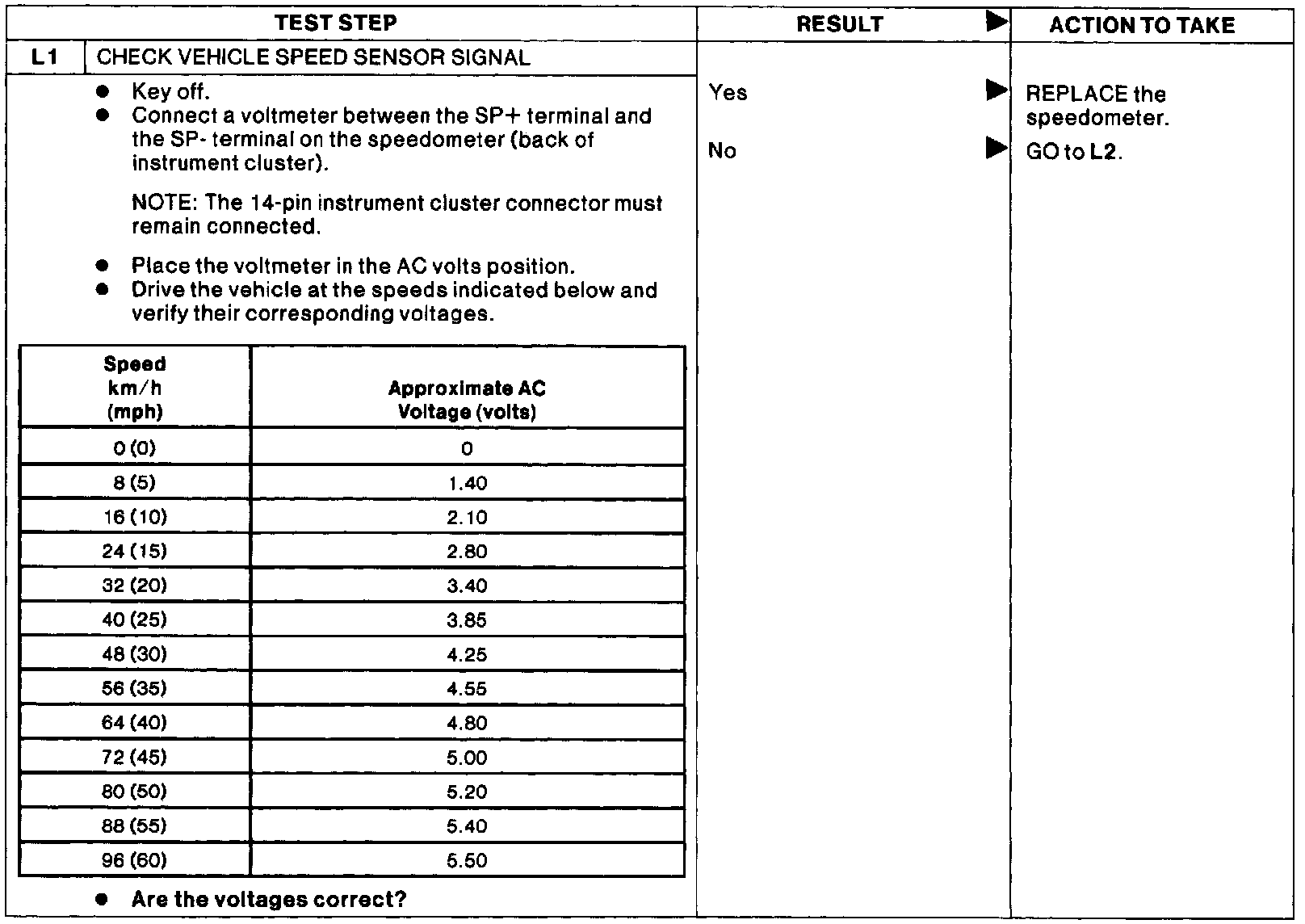

Test L1

Test L: Speedometer Inoperative.:

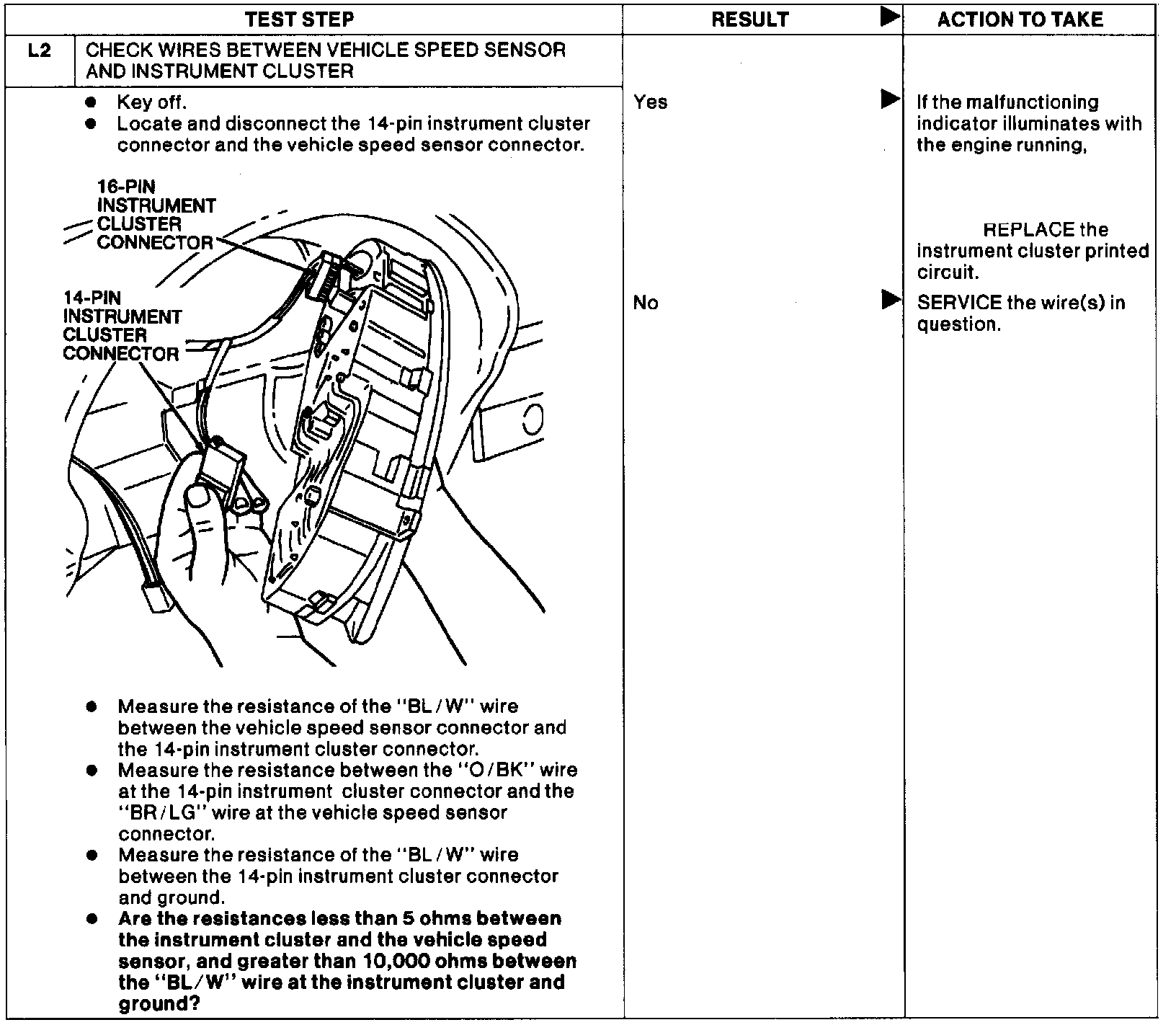

Test L2
