Pinpoint Tests

Test F: Coolant Temperature Reads Inaccurately.:

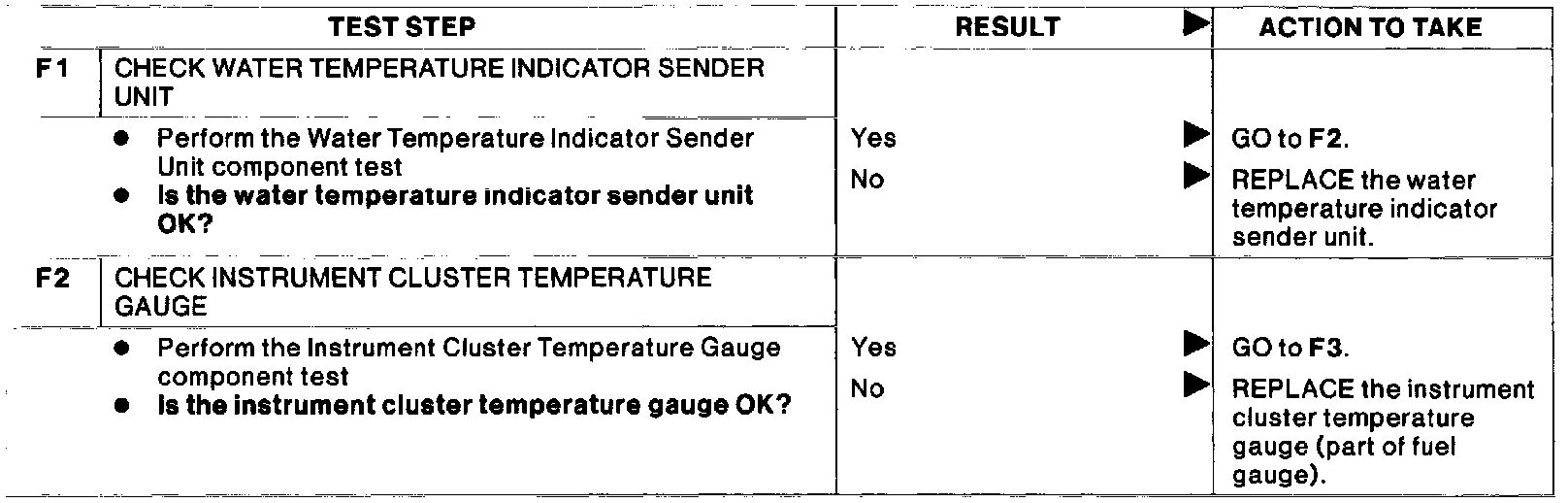

Test F1-F2

Test F: Coolant Temperature Reads Inaccurately.:

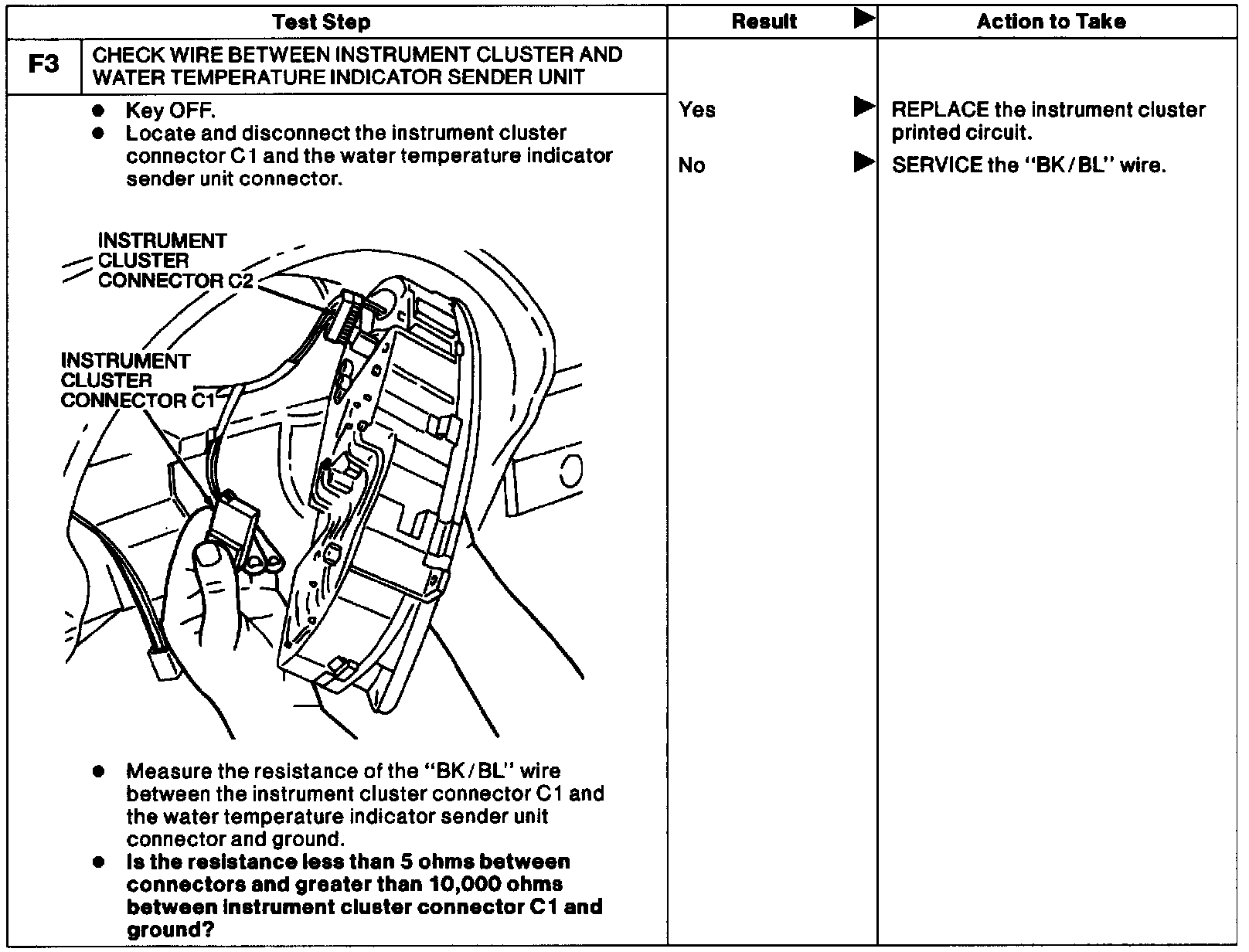

Test F3
