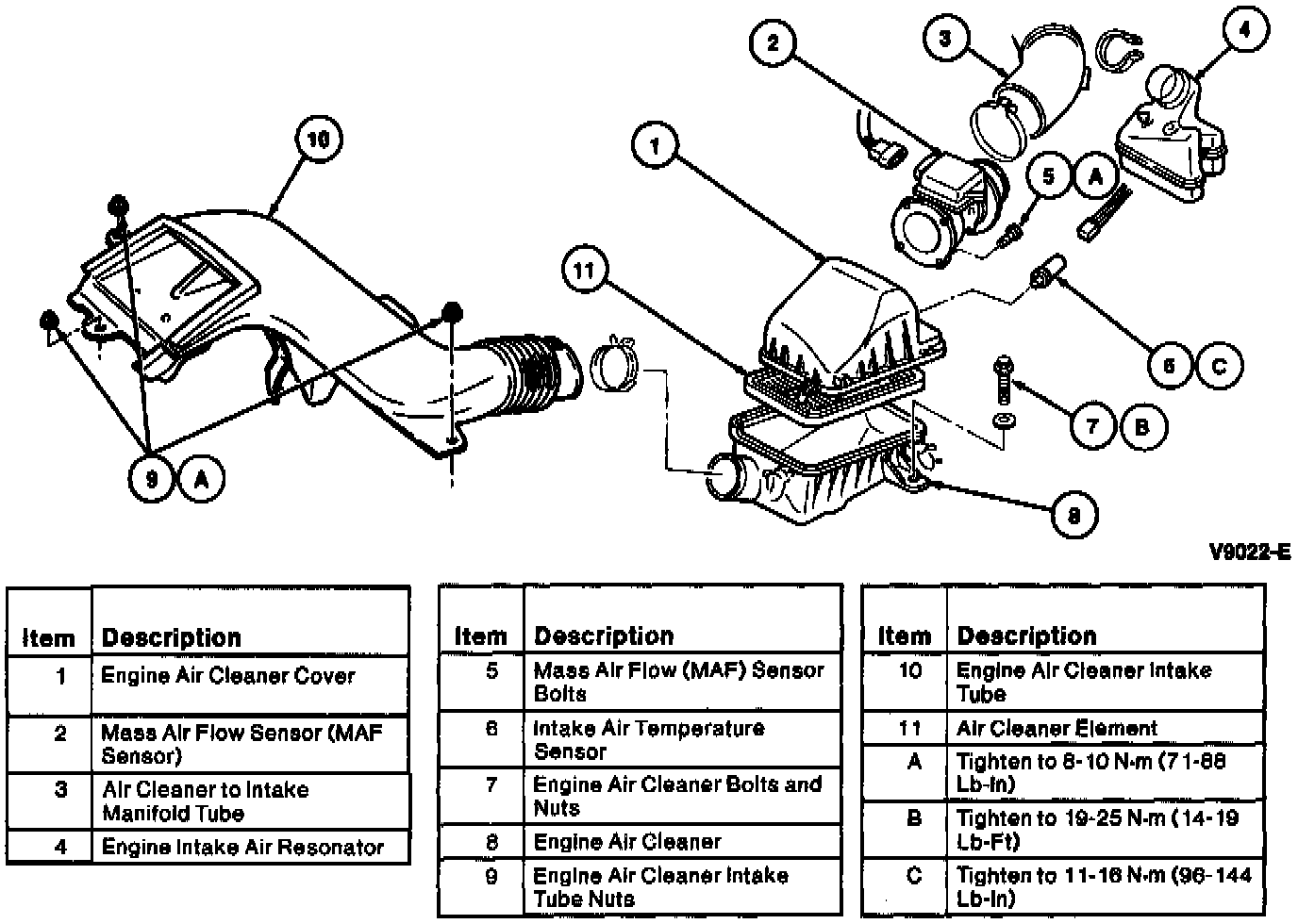

Resonator: Description and Operation

Air Induction System:

Air Induction System:

The engine intake air resonator is designed to reduce intake air noise by absorbing air flow pulsations as air is being drawn into the engine.
