Condenser HVAC: Description and Operation

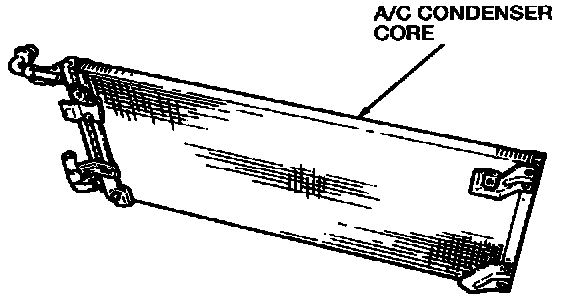

The A/C condenser core is an aluminum fin and tube heat exchanger, located in front of the radiator. The A/C condenser core cools compressed refrigerant gas by allowing air to pass between its fins and tubes. As the refrigerant is cooled, it condenses to a liquid state.

NOTE: Whenever an A/C condenser core is replaced, it will be necessary to replace the suction accumulator/drier.
