Instrument Panel

REMOVAL
1. Remove the glove compartment.
2. Remove the climate control assembly.

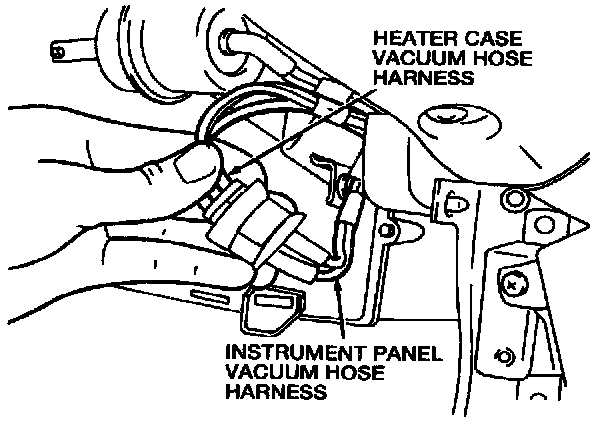

3. Disconnect the instrument panel vacuum hose harness from the heater case vacuum hose harness.




4. Disconnect the instrument panel vacuum hose harness from the A/C evaporator/blower motor assembly vacuum hose harness.
5. Release the four instrument panel vacuum hose harness tabs and remove the vacuum hose harness.

INSTALLATION
1. To install, reverse the removal procedure.
