Home >> Ford >> 1997 >> Probe V6-153 2.5L DOHC VIN B MFI >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Grounds >> G203

G203

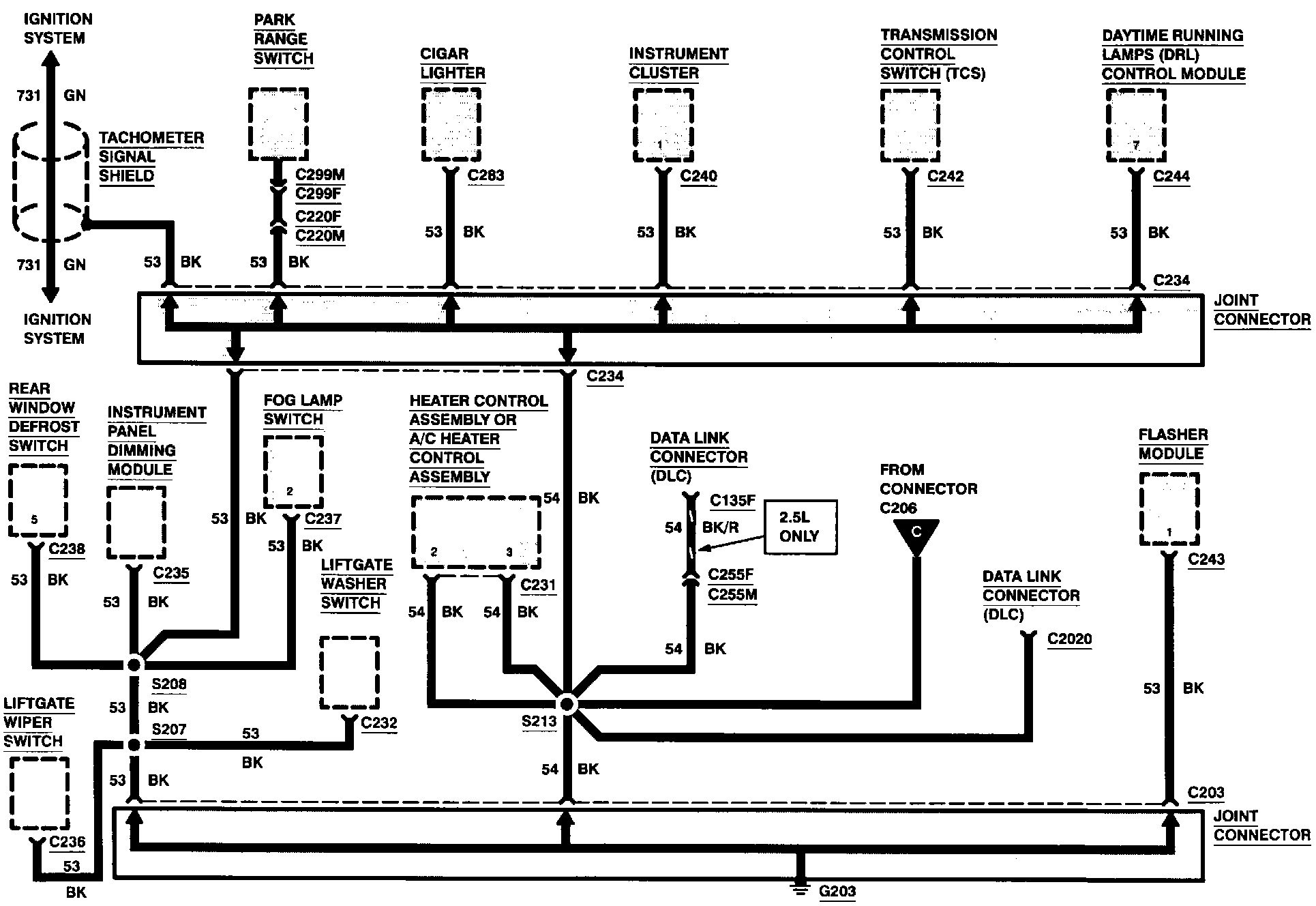

Grounds (G103, G203):



Grounds (G203):
