Wheel Stud / Lug Nut

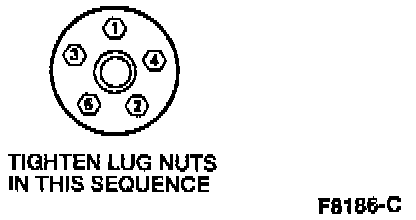

1. Evenly tighten the lug nuts in the torque sequence shown.
2. Use a torque wrench and final tighten to 88-118 Nm (65-87 ft. lbs.).
